Height Providers

Height providers are used to get a height value for a given position. Before we can get into the details however, we first need to take a look at VerticalAnchors.

Vertical Anchors

Vertical anchors are used to get a fixed height value depending on factors like the min and max build height. There is of course also a constant implementation that always returns the same value. Please note that the type doesn't have to be specified in Json. It's automatically inferred via the key name.

Warning

All specified values need to be within the the min and max build height of the world.

absolute

Always returns the same y-value.

Example
VerticalAnchor.absolute(10)
Example
{
  "absolute": 10
}

above_bottom

Returns a y-value above the min build height of the world by above_bottom blocks.

Example
VerticalAnchor.aboveBottom(5)

Tip

If you want to get the minimum build height, you can also use VerticalAnchor.bottom() or VerticalAnchor.BOTTOM instead of VerticalAnchor.aboveBottom(0).

Example
{
  "above_bottom": 5
}

below_top

Returns a y-value below the max build height of the world by below_top blocks.

Example
VerticalAnchor.belowTop(5)

Tip

If you want to get the maximum build height, you can also use VerticalAnchor.top() or VerticalAnchor.TOP instead of VerticalAnchor.belowTop(0).

Example
{
  "below_top": 5
}

Vanilla Height Providers

minecraft:constant

Always returns the y-value provided by a vertical anchor.

value

The vertical anchor to use.

Example
ConstantHeight.of(VerticalAnchor.absolute(10))
Example
{
  "type": "minecraft:constant",
  "value": {
    "absolute": 10
  }
}

Tip

Mojang also added a feature that allows directly specifying a vertical anchor when a height provider is expected. So this is would also be a valid height provider:

{
  "absolute": 10
}

Or even directly providing a constant value:

10

minecraft:uniform

Generates a random y-value between min_inclusive and max_inclusive in a uniform distribution.

min_inclusive

A vertical anchor that specifies the minimum y-value.

max_inclusive

A vertical anchor that specifies the maximum y-value.

Example
UniformHeight.of(VerticalAnchor.bottom(), VerticalAnchor.absolute(256))
Example
{
  "type": "minecraft:uniform",
  "min_inclusive": {
    "above_bottom": 0
  },
  "max_inclusive": {
    "absolute": 256
  }
}

minecraft:biased_to_bottom/minecraft:very_biased_to_bottom

Generates a random y-value between min_inclusive and max_inclusive with bias towards the minimum.

min_inclusive

A vertical anchor that specifies the minimum y-value.

max_inclusive

A vertical anchor that specifies the maximum y-value.

inner (Optional in Json)

The higher this value is, the more biased the distribution is towards the minimum. Defaults to 0.

VeryBiasedToBottomHeight.of(VerticalAnchor.bottom(), VerticalAnchor.belowTop(8), 8)
Example
{
  "type": "minecraft:very_biased_to_bottom",
  "min_inclusive": {
    "above_bottom": 0
  },
  "max_inclusive": {
    "below_top": 8
  },
  "inner": 8
}

minecraft:trapezoid

Generates a random y-value between min_inclusive and max_inclusive with a trapezoidal distribution.

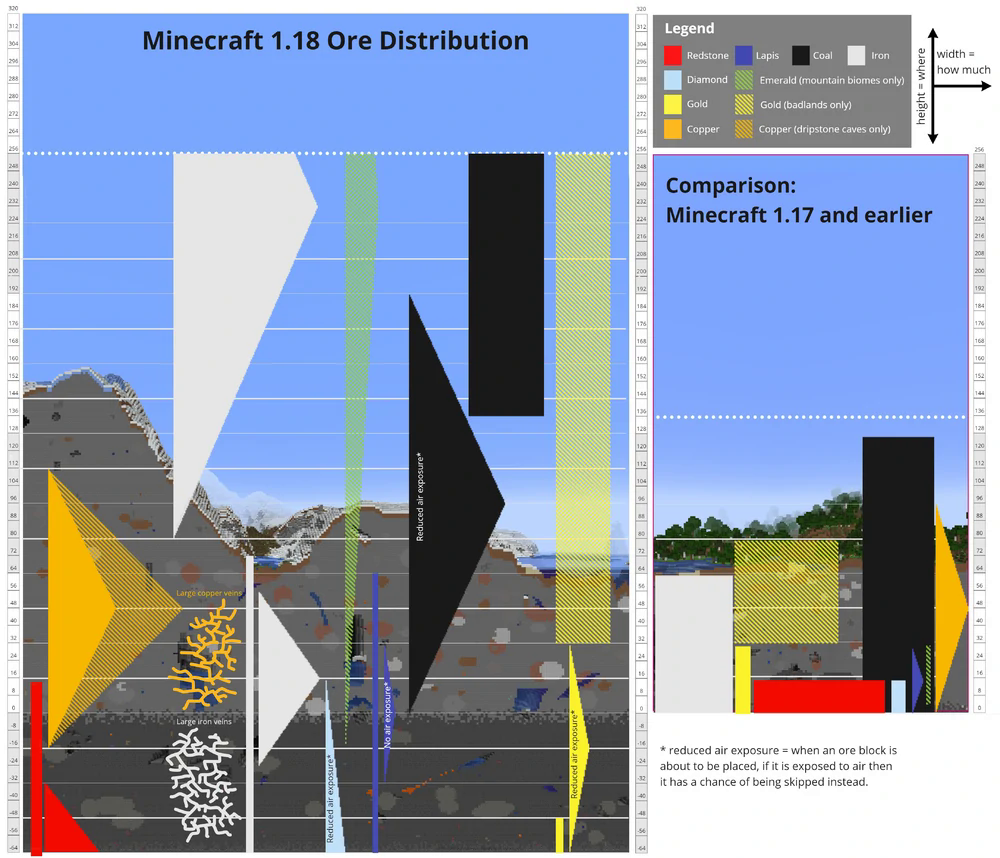

The Minecraft Wiki explains its usage in ore generation pretty well:

Trapezoidal distribution

min_inclusive

A vertical anchor that specifies the minimum y-value.

max_inclusive

A vertical anchor that specifies the maximum y-value.

plateau (optional)

The length of the range in the middle of the trapezoid that has a uniform distribution. Defaults to 0.

Example
TrapezoidHeight.of(VerticalAnchor.absolute(8), VerticalAnchor.absolute(24))
Example
{
  "type": "minecraft:trapezoid",
  "min_inclusive": {
    "absolute": 8
  },
  "max_inclusive": {
    "absolute": 24
  }
}

minecraft:weighted_list

Generates a random y-value based on a weighted list of other height providers.

distribution

A list of height providers and their weights (Can't be empty). data is the actual height provider and weight is the weight of the provider.

Example
WeightedListHeight(
    SimpleWeightedRandomList.builder<HeightProvider>()
        .add(UniformHeight.of(VerticalAnchor.absolute(0), VerticalAnchor.absolute(8)), 2)
        .add(ConstantHeight.of(VerticalAnchor.absolute(0)), 1)
        .build()
)
Example
{
  "type": "minecraft:weighted_list",
  "distribution": [
    {
      "data": {
        "type": "minecraft:uniform",
        "value": {
          "min_inclusive": 0,
          "max_inclusive": 4
        }
      },
      "weight": 2
    },
    {
      "data": 0,
      "weight": 1
    }
  ]
}

Inline VerticalAnchors

If none of the vanilla VerticalAnchors fit your needs, you can also inline your own VerticalAnchor via lambdas:

Example
ConstantHeight.of { ctx -> ctx.genDepth % ctx.minGenY }
